How A Quick Exhaust Valve Works: A Simple Guide for Beginners

In the world of pneumatic systems, speed and efficiency are often crucial. Whether it's in manufacturing, automation, or simple air-powered machinery, the ability to quickly move air in and out of actuators can greatly impact performance. One component that plays a key role in this process is the quick exhaust valve.



What is a Quick Exhaust Valve?

A quick exhaust valve is a specialized type of pneumatic valve designed to release air quickly from a system, especially after an actuator such as a cylinder completes its stroke. Its primary function is to accelerate the exhaust phase of the actuator’s operation by offering a faster route for air to escape, rather than forcing it to return through the longer path of the directional control valve and associated tubing.

This valve is typically installed as close as possible to the pneumatic actuator — usually at the port of a cylinder. By doing so, it minimizes the distance the exhaust air needs to travel, which in turn reduces the time it takes for the actuator to reset or reverse its motion. The quick exhaust valve plays a vital role in increasing cycle speed and improving system efficiency in automated and repetitive-motion operations.

By simplifying and speeding up the exhaust process, a quick exhaust valve can significantly enhance system responsiveness and productivity, making it an essential component in many pneumatic applications across industries like packaging, assembly, robotics, and automation.



Basic Components

Understanding the parts of a quick exhaust valve will help you better understand how it works. Here are the main components:

1. Valve Body

The valve body is the main outer shell that holds all the internal parts together. It’s typically made of metal (like brass, aluminum, or stainless steel) or durable plastic. The body has connection ports for the actuator and the exhaust outlet.

2. Exhaust Port

This is where the air exits the system. When the valve opens, compressed air from the actuator flows out through this port into the atmosphere. The design of the exhaust port is often optimized for high flow rates.

3. Inlet and Outlet Ports

These ports connect to the actuator and the air supply. The inlet allows compressed air in from the directional control valve, while the outlet sends it to the actuator.

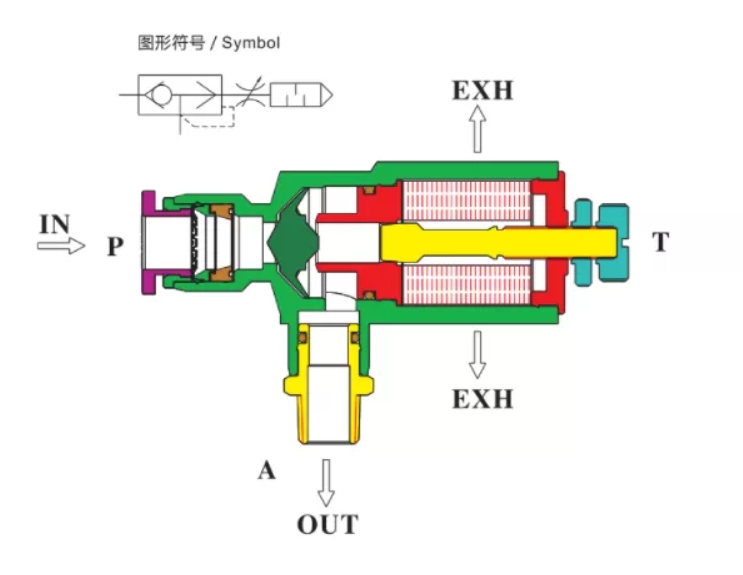

4. Internal Mechanism

Inside the valve, there is usually a disc or diaphragm that acts like a gate. When the actuator moves and air pressure drops in a specific direction, this internal component shifts, opening the exhaust port and letting the air out rapidly.



Working Principle

Let’s now take a closer look at how a quick exhaust valve functions during a typical pneumatic operation. Understanding the step-by-step airflow behavior helps illustrate how this small component can have a big impact on system speed and efficiency.

Step-by-Step Airflow Description

1. Air Supply to Actuator:
The process begins when compressed air is delivered from the directional control valve into the system. This air passes through the quick exhaust valve and flows into the actuator’s cylinder. At this stage, the internal mechanism of the valve — usually a flexible disc or diaphragm — remains sealed against the exhaust port. Its primary function now is to ensure that the incoming air moves directly into the actuator without any loss or leakage through the exhaust.

2. Actuator Movement:
As the compressed air enters the cylinder, it builds up pressure and forces the piston to move. Depending on how the pneumatic system is designed, this movement could be an extension or retraction of the actuator. During this phase, the quick exhaust valve simply acts as a passageway for the pressurized air to do its job.

3. Air Release:
Once the piston completes its stroke, the directional valve switches position. This change stops the flow of incoming air to the actuator and instead opens the line to allow air to escape. As this occurs, the pressure at the valve’s inlet port drops significantly.

4. Valve Activation:
This pressure drop triggers the quick exhaust valve to act. The internal disc or diaphragm is no longer held tightly against the exhaust port due to the reduced inlet pressure. It lifts automatically, opening a direct pathway for the air inside the actuator to be released immediately.

5. Fast Exhaust:
Instead of traveling back through long lengths of tubing and passing through the directional valve’s exhaust port, the trapped air exits right at the source — through the quick exhaust valve’s built-in exhaust port. This greatly reduces the exhaust time and improves system responsiveness.

6. Cycle Repeats:
With the air cleared efficiently, the actuator is quickly reset and ready for the next cycle. This fast and direct exhaust route helps significantly improve cycle times in repetitive-motion pneumatic systems, making the quick exhaust valve an essential component for any application demanding speed and precision.

Illustrative Example: Air Cylinder Actuation

Imagine a pneumatic cylinder being used in an assembly line to push a part into place. Without a quick exhaust valve, after each push, the air inside the cylinder must travel back through the entire system before the piston can retract. This adds delay.

With a quick exhaust valve installed near the cylinder, that used air is vented immediately — reducing the retraction time and allowing for faster repetition of the task.



Types of Quick Exhaust Valves

Not all quick exhaust valves are the same. Depending on your application, you might use different types:

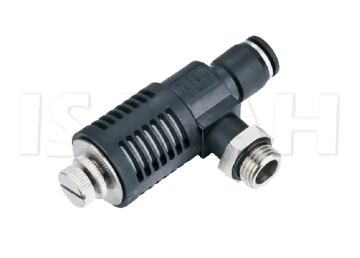

1. Inline Quick Exhaust Valves

These are the most common type, where the air supply and actuator are connected in a straight line. They’re compact and easy to install directly in the tubing line.

2. Direct-Mount Quick Exhaust Valves

These are designed to be mounted directly on the actuator port. By placing the valve as close as possible to the actuator, the exhaust path is minimized for maximum speed.

3. Variations in Size and Configuration

Quick exhaust valves come in various sizes (usually measured in port size, like 1/8”, 1/4”, 1/2”) and flow capacities. Some are designed for high-pressure systems, while others are suitable for smaller or more delicate applications.

Make sure to select the right type and size based on your system’s pressure, flow rate, and physical layout.



Simple Application Example

Let’s look at a real-world example to see how a quick exhaust valve can improve system performance.

Basic Pneumatic Circuit with Quick Exhaust Valve

Consider a circuit where a double-acting pneumatic cylinder is used for stamping in a packaging machine. The system includes:

• An air compressor

• A 5/2-way directional control valve

• Pneumatic tubing

• A quick exhaust valve

• The pneumatic cylinder

Without the quick exhaust valve, every time the cylinder finishes a stroke, the exhaust air has to return through the control valve and long tubing back to the system exhaust. This adds a delay of several hundred milliseconds — which adds up over thousands of cycles per hour.

With the quick exhaust valve installed near the cylinder, the air is vented instantly at the source. The result is a faster return stroke and overall cycle time reduction by up to 20-30%.

Performance Improvements

• Faster Actuation: Reduces return stroke time

• Less Heat and Wear: System doesn’t work as hard

• Improved Output: More cycles per minute = more productivity

• Energy Savings: Reduced compressor runtime due to quicker cycles



Conclusion

Quick exhaust valves may appear simple, but they play a crucial role in enhancing pneumatic system performance. By providing a direct path for air to exit, they significantly reduce delays, increase actuator speed, and improve overall efficiency. Available in various types like inline and direct-mount, choosing the right valve can greatly boost productivity and system responsiveness.
