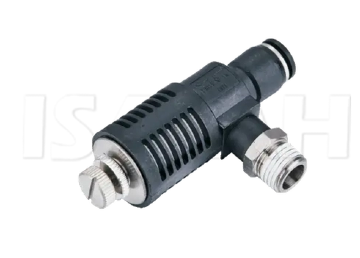

Quick exhaust valves are essential components in pneumatic systems, particularly in applications that demand fast and efficient actuation. These valves allow compressed air to exit a system directly at the actuator, bypassing the directional control valve, which results in faster cycle times and improved overall performance.
However, like any mechanical part, quick exhaust valves can develop issues over time, especially in harsh industrial environments. If left unchecked, these problems can lead to reduced system efficiency, increased downtime, and even costly equipment damage.
Issue 1: Leakage
Causes:
One of the most common problems in a quick exhaust valve is air leakage. This typically occurs due to:
Worn or damaged seals
Foreign debris lodged inside the valve
Cracks or damage to the valve body
When seals degrade due to age, chemical exposure, or excessive wear, they fail to hold pressure. Additionally, contaminants like dust or metal shavings can interfere with the valve’s internal mechanism, preventing a tight seal.
Inspection Tips and Fixes:
Visual Inspection: Remove the valve from the system and inspect it under good lighting. Look for cracks, corrosion, or obvious seal damage.
Leak Testing: Reinstall the valve and perform a soap bubble test or use an ultrasonic leak detector to ensure no air escapes during operation.
Proper sealing is critical to the function of a quick exhaust valve. Addressing leaks early can save energy and prevent actuator performance issues.
Issue 2: Delayed Exhaust or Poor Response
Causes:
A delay in the exhaust function can seriously impact actuator speed and overall system timing. Common causes include:
Blocked or restricted exhaust ports
Incorrect valve installation or orientation
Carbon buildup from oil mist in air supply

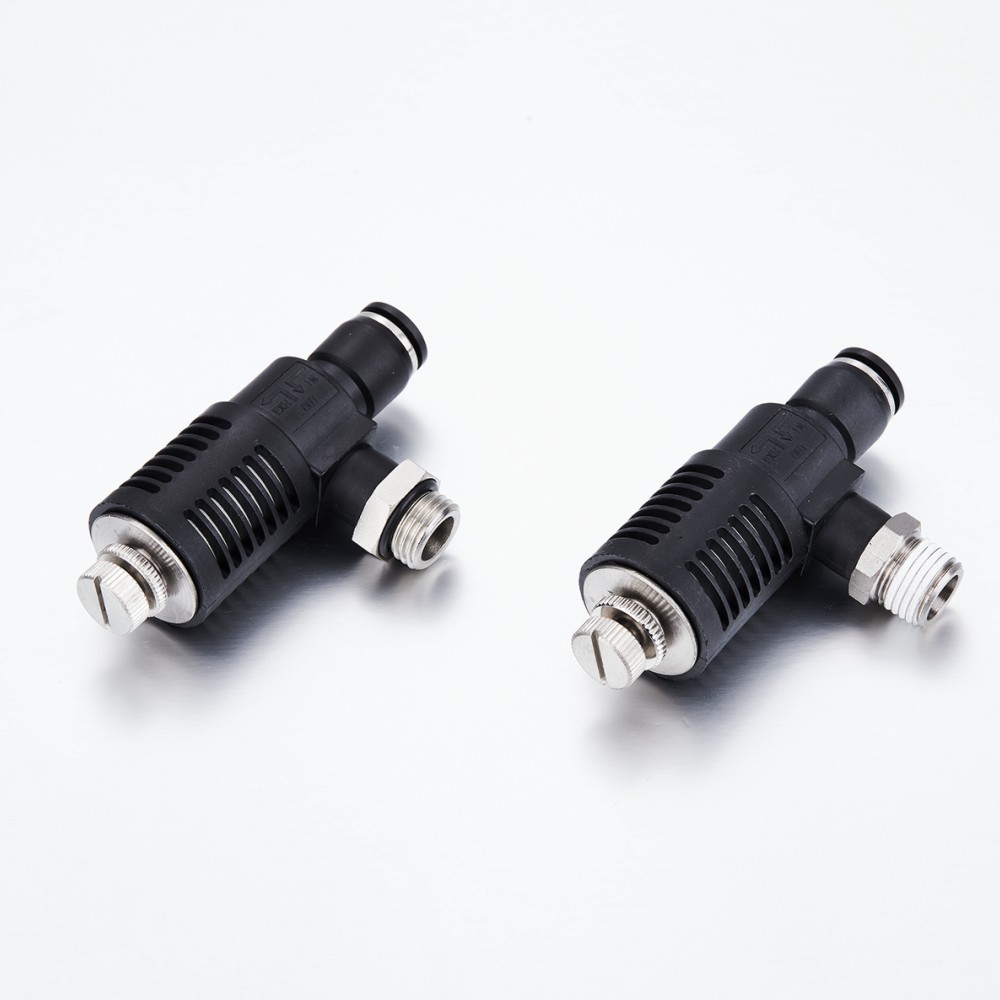

Cleaning and Repositioning Advice:
Check for Blockages: Inspect the exhaust port for dirt, dust, or carbon buildup. Even a small amount of debris can restrict airflow. Use compressed air and cleaning solvents designed for pneumatics to clear blockages.
Installation Review: Ensure the valve is mounted in the correct direction. A reversed valve or poor mounting angle can impede air escape. Follow the manufacturer’s diagram for correct flow direction.
Check for Exhaust Mufflers: If a muffler is attached to the exhaust port, make sure it’s not clogged. Replace it if it looks dirty or shows signs of clogging.
Test the System: Once the valve is cleaned and properly installed, cycle the actuator and observe the exhaust speed. If response improves, the problem is likely resolved.
A quick exhaust valve must operate with minimal resistance to maximize speed. Keeping the exhaust path clean and unrestricted is essential for optimal performance.
Issue 3: Valve Sticking or Not Operating
Causes:
Sometimes, a quick exhaust valve may stick or fail to activate entirely. This can happen due to:
Lack of lubrication in the air system
Corrosion or internal mechanical damage
Debris caught in the moving parts
Troubleshooting and Maintenance Routines:
Check Lubrication: Pneumatic systems rely on a light mist of lubricating oil to keep moving parts functioning smoothly. If your system runs dry air, ensure you’re using a lubricator or switch to valves designed for non-lube service.
Internal Cleaning: Disassemble the valve (if serviceable) and clean each part. Remove any buildup and inspect for signs of wear or damage.
Rust or Corrosion: In moist environments, corrosion may cause parts to seize. If corrosion is found, it may be necessary to replace the valve or use a corrosion-resistant model, such as one made of stainless steel or with protective coatings.
Actuation Test: Manually test the valve with low-pressure air to check its movement. If it fails to actuate properly, it may require replacement.
Sticking valves can severely affect the cycle timing and lead to incomplete actuator strokes. Regular lubrication and environmental control can prevent this issue from recurring.
Issue 4: Incompatibility with System Pressure or Flow
How to Identify Mismatched Specifications:
Not every quick exhaust valve fits all applications. Mismatches in pressure ratings or flow requirements can cause performance issues, such as:
Key Factors to Consider:
Flow Capacity (Cv Rating): Ensure the valve can handle the required flow rate for your actuator. If the flow is too high, pressure buildup may cause malfunction.
Operating Pressure: Check the valve’s maximum and minimum pressure ratings. Operating outside these limits can damage seals or cause erratic behavior.
Port Size: Use a valve with the same port size as your actuator or tubing to avoid restriction.
Media Compatibility: If your system uses specialty gases or misted oil, verify that the valve materials are compatible.
Selecting the Right Valve:
Consult manufacturer datasheets and use sizing calculators if available. It's also helpful to work with a pneumatic supplier or expert to match your quick exhaust valve to your system requirements.
Incorrect valve sizing is often overlooked but can be a root cause of many performance problems. Take time to select the right product to ensure consistent and efficient operation.
Preventative Maintenance Tips
Proper preventative maintenance is key to ensuring your quick exhaust valve functions optimally and enjoys a long service life. By taking regular care of your system, you can avoid common failures and minimize costly downtime in industrial operations.
1. Schedule Regular Inspections:
Implement a consistent inspection routine for all pneumatic components, especially the quick exhaust valve. These checks should include:
Visual inspections for external wear, corrosion, cracks, or loose fittings.
Leak tests using soapy water or ultrasonic tools to detect air leaks.
Functional testing to confirm the valve opens and closes quickly and reliably.
Early detection of issues allows for timely repairs or replacements, avoiding unexpected system failures.
2. Protect from Environmental Hazards:
Environmental contaminants are a major source of quick exhaust valve failure. Ensure your setup includes:
Filters at air inlets to trap dust and particles before they reach the valve.
Exhaust mufflers or screens to prevent debris from entering the exhaust port.
Moisture control using air dryers or water separators, particularly in humid environments where internal rust or seal degradation can occur.
Secure mounting in high-vibration applications to prevent fatigue or loosening over time.
3. Lubricate When Needed:
If your pneumatic system uses lubricated air, ensure the quick exhaust valve receives the right amount. A poorly adjusted lubricator may:
Cause sticky residue buildup if over-lubricated.
Lead to friction and premature wear if under-lubricated.
Use valves compatible with your lubrication method — some are designed specifically for oil-free systems.
4. Use Quality Parts:
Invest in high-quality quick exhaust valves from reputable manufacturers. Inferior valves may have subpar materials, loose tolerances, or weak seals that shorten their life. Using reliable components ensures consistent performance and reduces long-term maintenance costs.
Consistent upkeep and component quality can significantly enhance system efficiency and reliability.
Conclusion
Quick exhaust valves are small, often overlooked components that play a critical role in the efficiency and performance of pneumatic systems. While they are generally reliable, they can suffer from a variety of issues including leakage, delayed exhaust, sticking, and pressure incompatibility.
The good news is that most of these problems are easy to identify and fix with basic maintenance practices and a bit of troubleshooting knowledge. Replacing seals, cleaning exhaust ports, ensuring correct installation, and selecting the right valve specifications can dramatically improve performance.
Being proactive with inspection and maintenance routines will extend the life of your quick exhaust valves and minimize system downtime. However, if you find persistent issues or suspect valve failure, it may be time to replace the component altogether.
