How Does a Quick Exhaust Valve Work?

Introduction

A quick exhaust valve is a specialized pneumatic component designed to accelerate the exhausting of air from an actuator, typically a cylinder, directly into the atmosphere rather than forcing the air back through the directional control valve. This function reduces cycle time, improves system efficiency, and enhances machine productivity in applications where rapid movement is essential. Understanding how a quick exhaust valve works requires looking at its internal structure, airflow behavior, placement in pneumatic circuits, and the practical benefits it provides in different industries.

Core Principle of a Quick Exhaust Valve

At its core, a quick exhaust valve allows compressed air to bypass the return path of a directional valve, venting directly to the atmosphere through a large exhaust port. The valve is usually positioned close to the cylinder port to minimize backpressure and reduce restriction.

• Normal operation: When air is supplied to extend a cylinder, the valve directs flow from the inlet to the cylinder port.

• Exhaust phase: When the cylinder retracts, the return air from the cylinder does not flow back to the directional valve. Instead, it is immediately released through the exhaust port of the quick exhaust valve.

• Result: The actuator completes its cycle faster, consuming less energy per stroke and improving overall system performance.

This simple yet effective principle explains why quick exhaust valves are standard in high-speed automation.

Internal Structure and Flow Path of a Quick Exhaust Valve

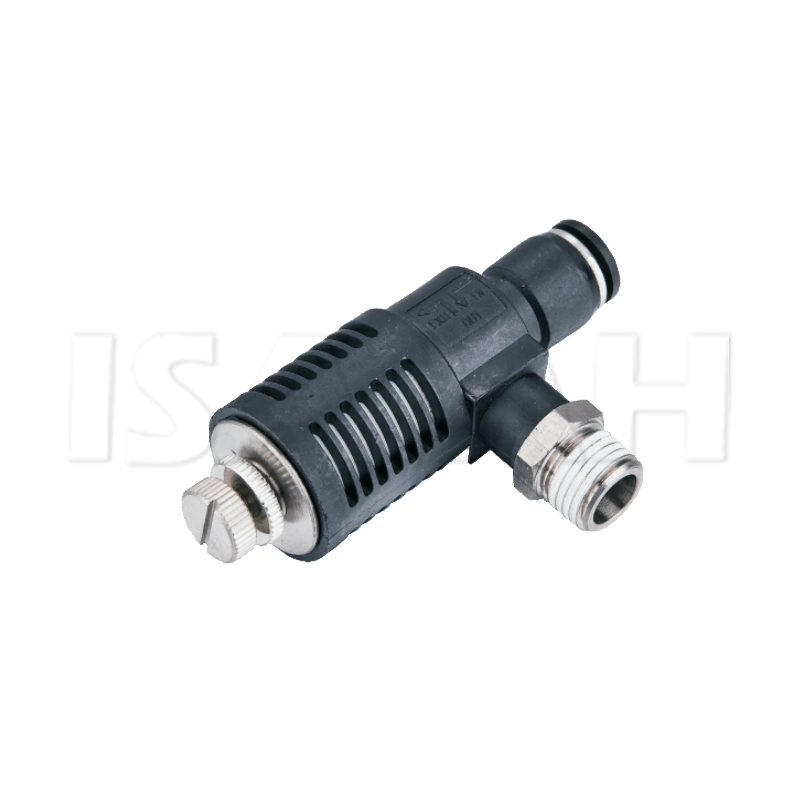

A quick exhaust valve is built with a compact housing, an inlet, an outlet (to the actuator), and a large exhaust port. Inside, a flexible diaphragm or poppet mechanism shifts depending on the pressure differential.

• Pressurized supply: Air pressure lifts the diaphragm, opening the path from the supply inlet to the cylinder.

• Exhaust stroke: As soon as the supply pressure drops, the diaphragm shifts and immediately exposes the actuator port to the exhaust port.

• Direct venting: The large exhaust port minimizes resistance, ensuring rapid depressurization.

Component	Function	Benefit
Inlet Port	Connects compressed air supply	Delivers pressurized flow efficiently
Cylinder Port	Connects to actuator	Transfers motion-driving air
Exhaust Port	Opens to atmosphere	Provides unrestricted, high-volume exhaust
Internal Diaphragm/Poppet	Moves based on pressure	Ensures fast switching between supply and exhaust

The self-acting internal design eliminates the need for electrical signals or additional control logic, making it a purely pneumatic efficiency booster.

Placement of Quick Exhaust Valves in Pneumatic Systems

Proper installation determines whether the quick exhaust valve delivers its intended benefit. The valve is generally mounted as close as possible to the actuator port.

• Cylinder mounting: Common in single-acting and double-acting cylinders to accelerate piston return.

• Clutch and brake systems: Installed near air-actuated clutches to provide immediate exhaust for safety and responsiveness.

• Vacuum generation: Used to quickly vent air when releasing suction in vacuum applications.

Placement Area	Common Application	Advantage
Cylinder port	Double-acting pneumatic cylinders	Faster extension/retraction
Brake lines	Air brakes in industrial machines	Immediate release of pressure
Vacuum ejectors	Pick-and-place automation	Quick release of objects

Incorrect placement, such as positioning too far from the actuator, reduces effectiveness by introducing line volume that slows exhaust speed.

Advantages of Using a Quick Exhaust Valve

The quick exhaust valve offers multiple technical and economic benefits, making it a valuable addition to pneumatic designs.

• Reduced cycle time: By exhausting directly, actuators move faster and return quicker.

• Energy efficiency: Lower backpressure reduces compressor workload and air consumption.

• Improved safety: In braking systems, rapid exhaust ensures immediate stopping response.

• Extended valve life: By bypassing the directional control valve for exhaust, wear and tear on the main valve is minimized.

• Compact performance boost: A small, low-cost component significantly enhances system efficiency.

In high-speed automation and packaging industries, these benefits directly translate to higher throughput.

Common Applications of Quick Exhaust Valves

Quick exhaust valves are not limited to one sector—they are applied across manufacturing, automotive, and processing industries.

1. Industrial automation: Faster cylinder cycles in robotic arms, stamping presses, and conveyors.

2. Transport equipment: Air brake systems in buses, trucks, and rail vehicles for safety-critical rapid venting.

3. Textile and packaging machines: Frequent start-stop operations require minimal delay.

4. Material handling: Vacuum ejector systems where items must be picked and released quickly.

5. Clutch and brake actuation: Ensures instantaneous disengagement of machinery for operator safety.

These applications highlight how versatility and speed make the quick exhaust valve indispensable.

Troubleshooting and Maintenance of Quick Exhaust Valves

Despite their simple design, quick exhaust valves can experience issues if not maintained properly.

• Leakage: Caused by worn diaphragms or contaminated seals. Regular inspection prevents air loss.

• Delayed response: Build-up of dirt or carbon deposits inside the valve reduces airflow efficiency.

• Improper installation: Using undersized connections or long tubing distances slows exhaust performance.

• Noise management: Since exhaust ports vent directly to atmosphere, mufflers may be required in noise-sensitive environments.

Problem	Cause	Solution
Air leakage	Damaged diaphragm	Replace diaphragm or seal kit
Slow exhaust	Contaminated valve	Clean or replace valve
Noise issues	Open exhaust vent	Fit pneumatic silencers
Reduced performance	Wrong installation point	Re-mount closer to actuator

Preventive cleaning and scheduled replacements ensure long-lasting performance with minimal downtime.

Design Considerations When Selecting a Quick Exhaust Valve

Selecting the correct quick exhaust valve is critical for achieving desired results. Engineers should evaluate:

• Flow capacity (Cv): Determines how much air can be vented per second. Higher Cv means faster exhaust.

• Material compatibility: Brass, aluminum, or stainless steel housings are chosen depending on operating environment.

• Seal type: Nitrile, Viton, or EPDM seals must match air quality and temperature range.

• Connection size: Should match actuator port size to prevent bottlenecks.

• Environment: Dusty or noisy environments may require protective covers or mufflers.

These considerations ensure that the valve complements the system rather than becoming a limiting factor.

Conclusion

A quick exhaust valve functions as a time-saving and efficiency-boosting element in pneumatic systems by releasing return air directly into the atmosphere rather than routing it through a control valve. Its simple diaphragm-based design, correct placement near actuators, and ability to deliver faster cycle times make it indispensable in automation, transportation, and material-handling industries. With proper selection and maintenance, a quick exhaust valve not only improves performance but also enhances safety and reliability.

FAQ

1. What is the main purpose of a quick exhaust valve?
Its main purpose is to accelerate exhaust from a pneumatic actuator, reducing cycle time and improving system efficiency.

2. Can a quick exhaust valve be used in hydraulic systems?
No, it is specifically designed for compressed air. Hydraulic systems require different valve technology due to liquid incompressibility.

3. How is a quick exhaust valve installed?
It should be installed directly at the cylinder port or as close as possible, with the exhaust port venting freely to the atmosphere.

4. Do quick exhaust valves require electrical control?
No, they operate purely on pressure differential, making them self-actuating and maintenance-friendly.

5. What industries benefit most from quick exhaust valves?
Automation, packaging, transport (air brakes), material handling, and textile industries benefit the most due to frequent, high-speed pneumatic cycles.
