Quick connect fittings have revolutionized the way tubes and pipes are joined in various industries. They offer a swift and secure method to connect tubing without the need for specialized tools or extensive training. This article delves into the intricacies of attaching a quick connect to a tube, providing a comprehensive guide for factories, channel dealers, and distributors.

In environments where copper and zinc usage is limited, Copper/zinc-free specifications quick connecting tube fittings become essential. They ensure compliance with industry regulations while maintaining efficiency and reliability.

Understanding Quick Connect Tube Fittings

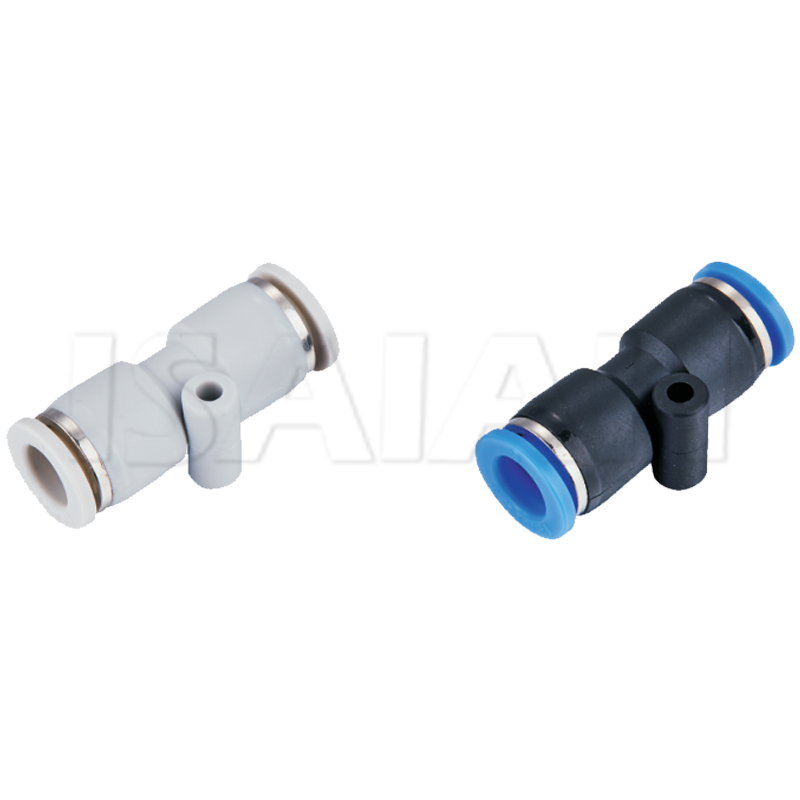

Quick connect tube fittings, also known as push-to-connect fittings, are designed for easy and rapid installation. They eliminate the need for threading, soldering, or flaring, simplifying the assembly process.

Types of Quick Connect Fittings

  • Push-to-Connect Fittings

  • Compression Fittings

  • Camlock Couplings

  • Snap-Type Couplings

Materials Used

Common materials include stainless steel, brass, and specialized alloys. In certain applications, use in places where copper and zinc are limited is crucial to meet safety and regulatory standards.

Step-by-Step Guide to Attaching a Quick Connect

Attaching a quick connect to a tube involves several key steps to ensure a secure and leak-free connection.

1. Preparing the Tube

First, cut the tube to the desired length using a tube cutter. Ensure the cut is straight and clean to prevent any sealing issues.

  • Deburr the inside and outside of the tube.

  • Clean the tube end to remove any debris or contaminants.

2. Selecting the Right Fitting

Choose a fitting that matches the tube’s material and diameter. If operating in environments that restrict copper and zinc, opt for Copper/zinc-free specifications quick connecting tube fittings.

3. Attaching the Fitting

  1. Insert the tube into the fitting until it bottoms out.

  2. Pull back gently to ensure it is securely locked.

  3. Check for any misalignment or gaps.

4. Testing the Connection

After attachment, it's crucial to test the connection for leaks.

  • Pressurize the system gradually.

  • Inspect for any signs of leakage.

  • Tighten the fitting if necessary.

Applications and Industries

Quick connect fittings are utilized across various industries due to their efficiency and reliability.

Manufacturing Plants

In manufacturing, they streamline assembly lines and reduce downtime. They are vital in pneumatic and hydraulic systems, where maintenance speed is critical.

Chemical Processing

Chemical plants use them to facilitate quick changes in fluid pathways. Selecting the right material, especially in areas limiting copper and zinc, is essential to prevent contamination.

Food and Beverage Industry

They are ideal for systems requiring frequent disassembly for cleaning. Materials used must comply with food safety standards, often excluding copper and zinc.

Advantages of Using Quick Connect Fittings

Advantage Description
Ease of Installation Requires minimal tools and training.
Time-Saving Reduces assembly time significantly.
Versatility Suitable for various materials and sizes.
Reliability Provides a secure and leak-free connection.

Challenges and Solutions

While quick connect fittings offer numerous benefits, they also present challenges that must be addressed.

Material Compatibility

Using incompatible materials can lead to corrosion and system failure. In regions where copper and zinc are restricted, alternative materials must be used.

Pressure and Temperature Limits

Exceeding the specified limits of the fittings can cause leaks or bursts. Always verify the specifications against operational requirements.

Case Study: Implementing Copper/Zinc-Free Fittings

A manufacturing facility needed to upgrade its pneumatic systems while adhering to environmental regulations limiting copper and zinc use.

Solution

They opted for Copper/zinc-free specifications quick connecting tube fittings, ensuring compliance and system efficiency.

Results

  • Improved system reliability.

  • Compliance with environmental standards.

  • Reduced maintenance costs.

Best Practices for Dealers and Distributors

For channel dealers and distributors, understanding customer needs is essential.

Stocking the Right Products

Carry a range of fittings, including those suitable for environments limiting copper and zinc.

Providing Technical Support

Assist customers in selecting the appropriate fittings for their applications.

Staying Updated with Industry Standards

Keep abreast of regulatory changes and new product developments.

Why Choose Our Quick Connecting Tube Fittings

Our products are designed to meet the highest industry standards. With an annual output of 15 million tons, we ensure consistent quality and supply.

  • Quick reply within 24 hours.

  • Large stock for regular sizes.

  • Free samples of high quality.

  • 100% after-sales quality and quantity assurance.

As a leading supplier of quick connecting tube fittings, we are committed to meeting your needs efficiently.

Conclusion

Attaching a quick connect to a tube is a straightforward process that offers numerous advantages. By selecting the appropriate fittings, especially in environments limiting copper and zinc, factories, dealers, and distributors can ensure efficient and compliant operations.

We are here to support your needs, providing high-quality products and exceptional service. Embrace the efficiency of quick connect fittings and advance your operations today.
