SU Aluminium Alloy Pneumatic Cylinder

SKU:
Availability:
Inquire Add to Basket

FEATURES

1、 Implement of our company Standard;

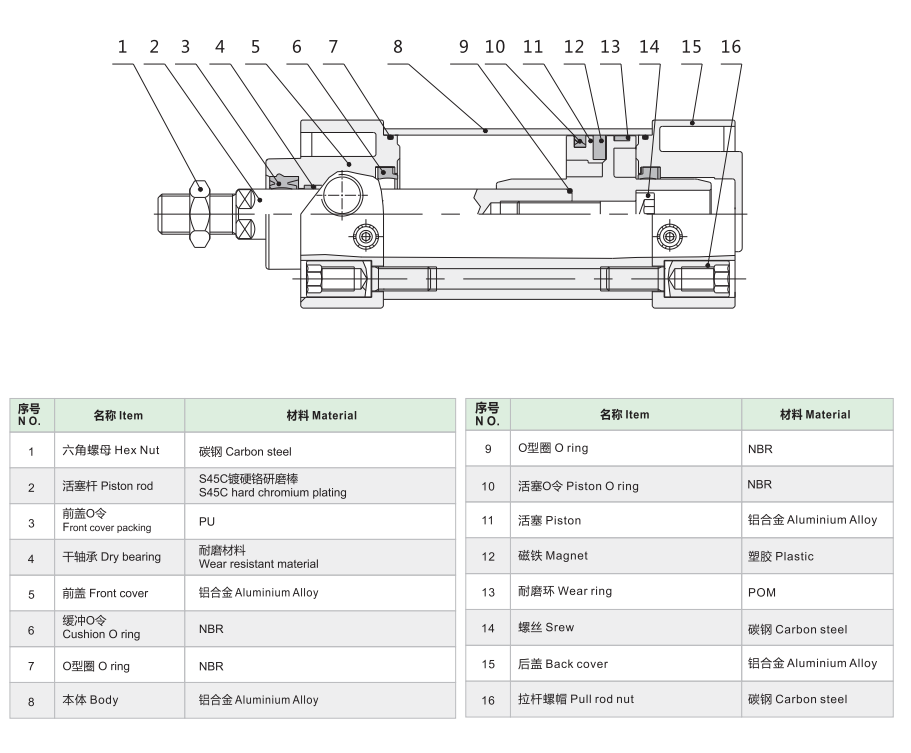

2、 Piston using special both way sealing structure with tight dimension and the function of oil storage:

3、 Mi-type cylinder body without rod;

4、 Compared with ISO15552 Standard Cylinder, the length of SU cylinder's shorter in the same bore;

5、 Adjustable buffers at both ends;

6、 Various types of the cylinder and cylinder accessories for choosing;

7、 With high temperature resistant material, the cylinder can work normally under the condition of 150℃.

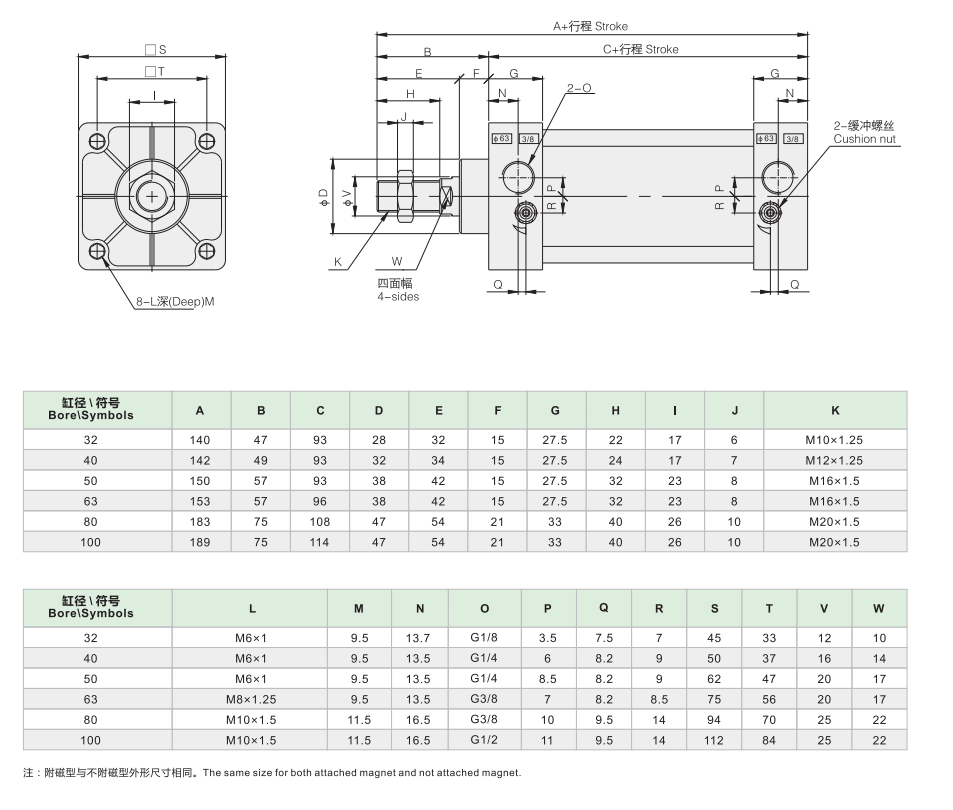

Bore Size(mm) 32 40 50 63 80 100
Acting Mode Double Acting
Working Media Cleaned Air
Working Pressure 0.1~0.9MPa(1-7kgf/cm2)
Proof Pressure 1.35MPa(10.5kgf/cm2)
Working Temperature -5~70℃
Port Size G1/8 G1/4 G3/8 G1/2
