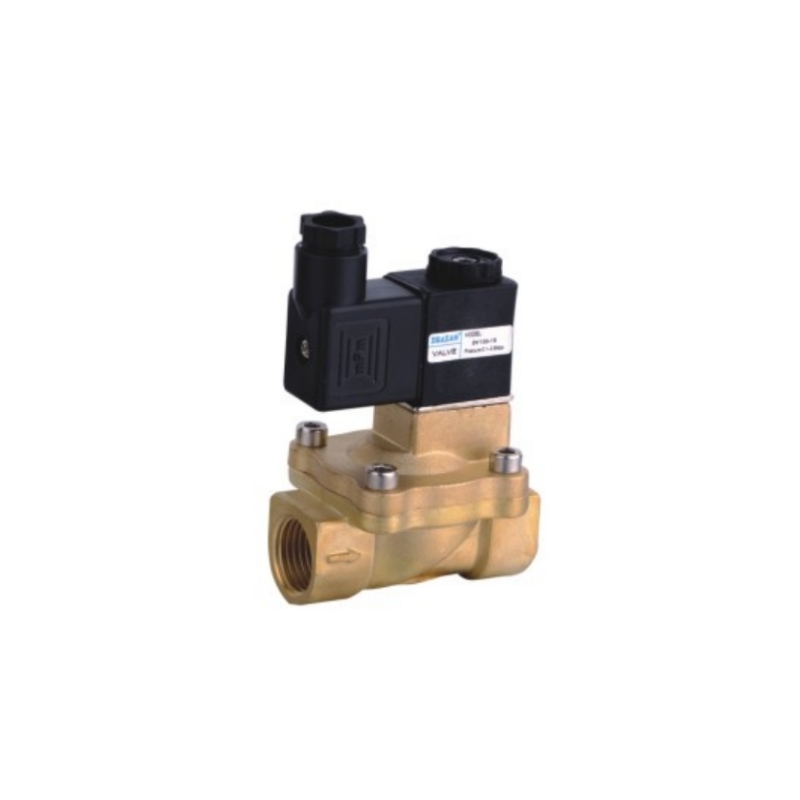

I2V Brass Solenoid Valve

SKU:
Availability:
Inquire Add to Basket

Model

I2V025-06

I2V025-08

I2V130-10

I2V130-15

I2V250-20

I2V250-25

Working Medium

Air, Water, Oil

Acting

Direct Drive Type

Guide Type

Working Type

Normal Close Type

Aperture Of Flow Rate (mm)

2.5

13

25

CV Value

0.23

6.2

23

Joint Pipe Bore

G1/8

G1/4

G3/8

G1/2

G3/4

G1

Operation Fluid Viscosity

20CST Below

Working-Pressure

0~1.0Mpa

0.05~0.7Mpa

Max. Pressure Resistance

1.5Mpa

1.05Mpa

Operating Temperature Range

-10~80℃

Voltage Range

±10%

Protect Class

IP65

Power Consumption

AC:7VA/60Hz,9VA/50Hz/DC:6W

Insulation

F Class
Material of body Brass
Seal NBR

Shortest Excitation Time

0.05 Second
