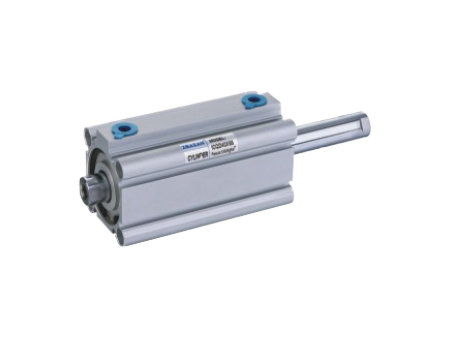

ICQD

SKU:
Availability:

FEATURES

1、 Implement of JIS Standard;

2、 Piston using special both way sealing structure with tight dimension and the function of oil storage;

3、 Rear cap& cylinder body, piston rod& piston using impact reliably riveting structure;

4、 Using rubber buffer gasket to reducing impact;

5、 Compact type structure can effectively save space;

6、 The body with magnet groove, easy to install the magnet;

7、 Various type of cylinder for choosing.
